Advantage 100
"High Gain 100 Mile Antenna
"

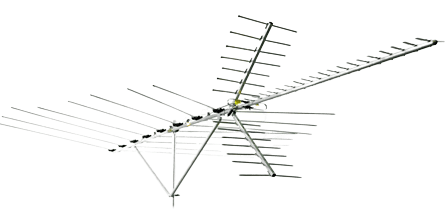

Channel Master Digital Advantage 100 (CM3020)
The Advantage 100 is a directional (yagi), line-of-sight outdoor antenna that receives high definition and digital signals from a single direction and is optimized for high VHF and UHF signals. Channel Master has rated this antenna up to 100 miles.
We have installed many of these antennas within 65 miles of Orlando, Tampa and Gainesville and have been very pleased with the reception we have received.
This is our first choice for a 20-30 Ft. telescopic pole system with amp and rotor.
NOT SURE WHAT YOU WANT? WE CAN HELP!
Long range directional (line of sight) outdoor antenna up to 100 miles
What’s Included:
Digital Advantage 100 Antenna
Hardware (mast, amplifier and coax cable not included)
Installation Guide
Features:
Reception Range 100 miles
Type Outdoor
CEA Color Code yellow, green, light green, red
Reception Pattern directional
Built-In Amplifier? no
Installation: tower, roof, mast, eave, chimney
90 days Limited Warranty
Channel Master 100 Mile Rated Advantage CM3020
Electrical Specifications
Bandwith 174 to 216 and 470 to 700 MHz
VHF Gain 7.5dB
UHF Gain 10dB
Front to Back Ratio 14dB
Return Loss N/A
Impedance 300 Ohm (75 Ohm balun included)
Mechanical Specifications
Boom Length 90.5"
Number of Elements 41
Max Element Width 61"
Mounting Clamp U bolt up to 2"
Turning Radius 6 ft.
Output Connector F-type
Size (product) 90.675 x 60 x 22 in
Size (packaging) 50.5 x 7 x 7.5 in
Weight (product) 4.5 lb
Weight (packaging) 7.75 lb
Wind Resistance (at 100 mph, no ice) – 38 lbew Paragraph
