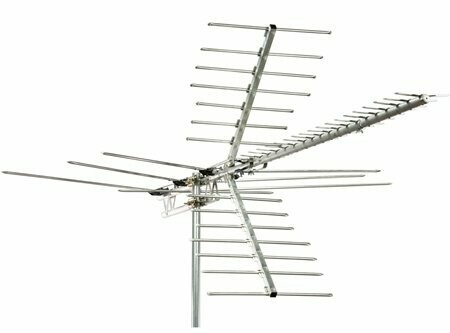

The Villages Special- Channel Master Digital Advantage HD 100 Antenna w/ Pay-Pal Financing*
Digital Advantage 100
CM2020
The Digital Advantage 100 is a directional(LP), line-of-sight outdoor antenna that receives high definition and digital signals from a single direction. The manufacturer rated this antenna at 100 miles.
Long range directional (line of sight) antenna receives a 4 star rating from our installation crew and is our #2 selling mast mounted antenna.
 |
|
Electrical Specifications
| Bandwith | 174 to 216 and 470 to 700 MHz |
| VHF Gain | 7.5dB |
| UHF Gain | 10dB |
| Front to Back Ratio | 14dB |
| Return Loss | N/A |
| Impedance | 300 Ohm (75 Ohm balun included) |
Mechanical Specifications
| Boom Length | 90.5" |
| Number of Elements | 41 |
| Max Element Width | 61" |
| Mounting Clamp | U bolt up to 2" |
| Turning Radius | 6 ft. |
| Output Connector | F-type |
| Size (product) | 90.675 x 60 x 22 in |
| Size (packaging) | 50.5 x 7 x 7.5 in |
| Weight (product) | 4.5 lb |
| Weight (packaging) | 7.75 lb |
| Wind Resistance | (at 100 mph, no ice) – 38 lb |
Antenna Pre-Amp and Power Supply
Preamp VHF/UHF/FM Channels 7-69 LTE Filter, Switchable FM Trap Variable gain 20-30 dB Separate gain controls for UHF and VHF Switchable Single or Dual Input Power LED indicator Totally weatherproof, no need for cable boots Fully Shielded
1-year limited warranty
*STANDARD INSTALLATION INCLUDES ANTENNA MOUNTED ON 20 FT MAST, UP TO 75 FT RG 6 COAX, 4" FACIA BRACKET, BONDING TO COMMON GROUND WITH UP TO 10 FT SOLID COPPER #10 CABLE, AND CABLE ROUTED TO ONE TV ON A PRE WIRED HOME, OR WITH CABLE ROUTED TO ONE TV THROUGH AN EXTERIOR WALL (ONE LAYER BRICK, MASOMNARY OR WOOD FRAME).
* Pay-Pal financing subject to the terms and conditions of Pay-Pal.
