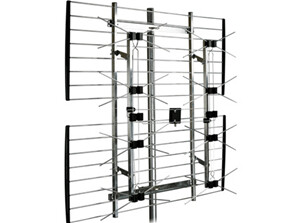

Channel Master EXTREMEtenna 80 w/ Installation Options

+6

+5

+4

+3

+2

Channel Master EXTREMEtenna 80 w/ Installation Options

Name: HD7698P Platinum HD Series Antenna (HD7698P) Installed
Brand: Winegard
SKU: CM-4228HD
Price: 189.95 USD
Availability: InStock

Store / ANTENNAS SHOP / Antennas

SKU CM-4228HD

$189.95

Optional Installation and Upgrades

Add RCA Amplifier (19db gain) ( +$59.99 )

Add RCA Rotor (Includes Rotor wire) ( +$179.00 )

Add AntennaCraft Rotor (includes Rotor Wire) ( +$359.00 )

Add Channel Master Rotor (includes Rotor Wire) ( +$559.00 )

Upgrade to 20 Ft Telescopic Pole ( +$50.00 )

Upgrade to 30 Ft Rohn 25 G Tower ( +$900.00 )

Upgrade to 40 Ft Rohn 25 G Tower ( +$1,400.00 )

Upgrade to 50 Ft Rohn 25g G Tower ( +$1,950.00 )

Additional Outlets ( +$35.00 )

Quantity:

1

Product Details

Brand: Winegard

UPC: 523161281236DIY

The EXTREMEtenna is an 8-Bay, phased array, multi-directional outdoor antenna that receives high definition and digital signals from a span of 180 degrees. This antenna has a reception range of up to 80 miles.

Details

Multi-directional (180-degree range) outdoor antenna up to 80 miles

What’s Included

EXTREMEtenna (Mast, Amplifier and Coax Cable Not Included)

(2) U-Bolts

Installation Guide

1-Year Limited Warranty

Features

Reception Range	80 Miles
Type	Outdoor
CEA Color Code	Yellow, Green, Light Green, Red, Blue, Violet
Reception Pattern	Multi-directional
Built-In Amplifier	No
Installation	Roof, Attic, Mast, Eave, Chimney

Electrical Specifications

Bandwidth	174 to 216 and 470 to 700 MHz
VHF Gain	5dB
UHF Gain	12dB
Front to Back Ratio	18dB
Return Loss	N/A
Impedance	75 Ohm

Mechanical Specifications

Boom Length	N/A
Number of Elements	N/A
Max Element Width	N/A
Mounting Clamp	U bolt up to 2"
Turning Radius	2 ft.
Output Connector	F-type
Size (product)	41 x 33 x 5 in
Weight (product)	10 lb
Wind Resistance	(at 100 mph, no ice) – 72 lb
