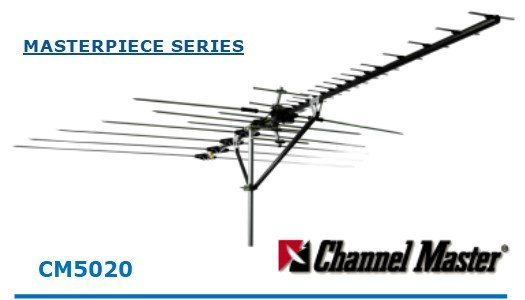

Channel Master Masterpiece 100 (CM5020)
Mastepiece 100
"High Gain Heavy Duty Antenna
"
Channel Master Mastercraft HD 100 Mile Antenna
The Masterpiece 100 is one of Channel Master"s best HDTV Antennas. Built to last, The Masterpiece is an good choice for installation in areas where large birds like to roost on antennas. A directional (log periodic), line-of-sight outdoor antenna that receives high definition and digital signals from a single direction. This antenna has a reception range of up to 100 miles and is designed to withstand extreme outdoor conditions.
Long range directional (line of sight), rugged outdoor antenna receives a 5 star rating from our installation crew.
NOT SURE WHAT YOU WANT? WE CAN HELP!
What’s Included
Masterpiece 100
Hardware (mast, amplifier and coax cable not included)
Installation Guide
Features
Reception Range
100 miles
Type
Outdoor
CEA Color Code
yellow, green, light green, red, blue, violet
Reception Pattern
directional
Built-In Amplifier
no
Installation
roof, mast, eave, chimney, telescopic pole, Rohn tower
Manufacturers Warranty
90 days of parts and labor
Electrical Specifications
Bandwith
54 to 216 and 470 to 700 MHz
VHF Gain
10dB
UHF Gain
16dB
Front to Back Ratio
17dB
Return Loss
N/A
Impedance
300 Ohm (75 Ohm balun included)
Mechanical Specifications
Boom Length
109"
Number of Elements
28
Max Element Width
100.5"
Mounting Clamp
U bolt up to 2.5"
Turning Radius
6 ft.
Output Connector
F-type
UPC
020572050203
Size (product)
116 x 101.5 x 20 in
Weight (product)
11.5 lb
Wind Resistance
(at 100 mph, no ice) – 30 lb
